KingChain 1/8 in. x 3/16 in. x 250 ft. Vinyl-Coated Galvanized Aircraft Cable, 7×7 Construction – 340 lbs Safe Work Load – Reeled
Original price was: $59.19.$43.21Current price is: $43.21.
Galvanized finish provides good corrosion and rust resistance
Safe workload of 340 lbs
7×7 construction ensures durability
- Quality Meets Affordability
- Service that stands out, online and always timely.
- Shop with Zero Worries
- Free Shipping, Quality Goods

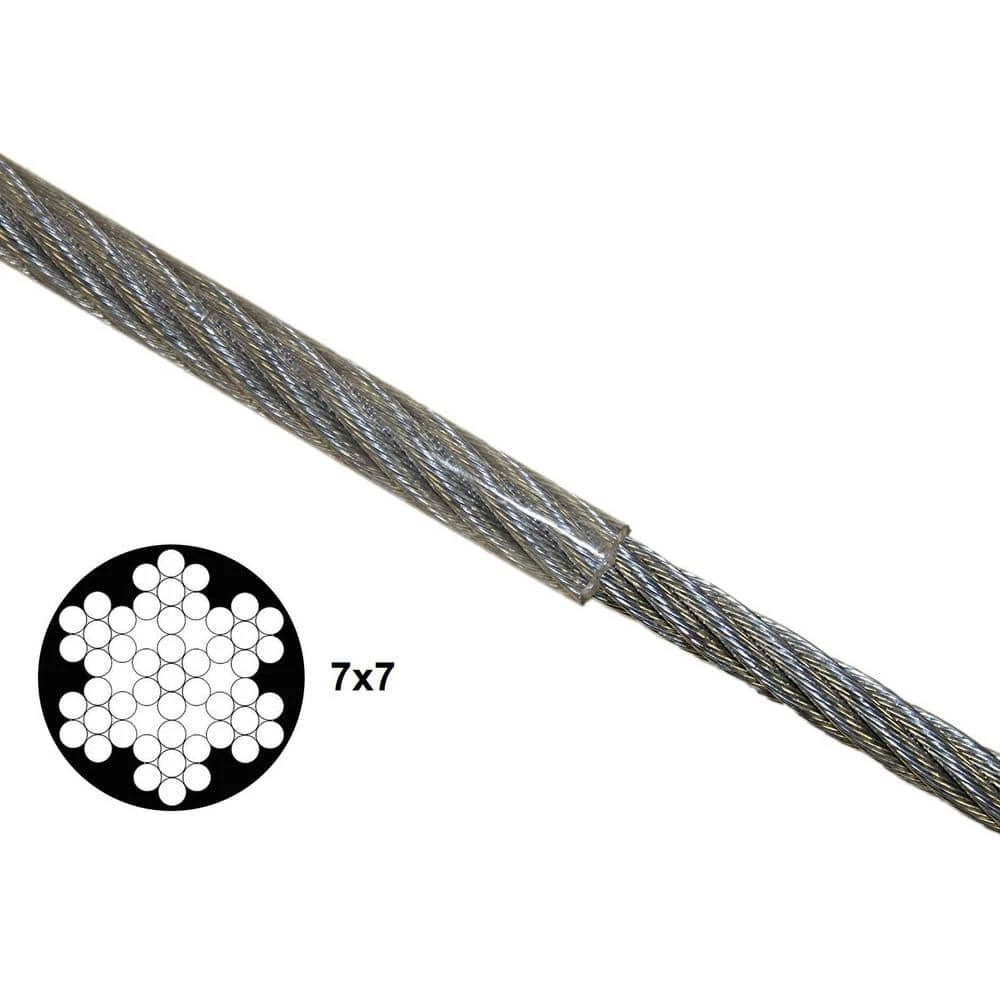

KingChain vinyl-coated galvanized aircraft cables are used for many material handling applications and have typical home uses for garage door cables, winch lines, tie-downs, dog runs, hanging signs, and guy wires for flagpoles. KingChain aircraft cable is made in accordance with US Federal Specification RR-W-410D. The cable is hot-dipped galvanized for long lasting durability and moderate corrosion resistance. The 7×7 construction consists of 7 individual wires laid in a spiral around a center King wire to form a strand. Seven strands are then wound together to form a cable. The cable is then coated in a clear sheath of vinyl for added weather resistance. This construction provides good strength, good flexibility and good abrasion resistance. Remove sections of the vinyl coating when using cable accessories, like sleeves, clips or thimbles. The steel cable must be in contact with the accessory to ensure a secure grip. This cable has a Safe Working Load (SWL) of 340 lbs. (154 kg). Its breaking strength is 5 times the SWL (design factor 5:1). Any breaking strength ratings are listed for comparison purposes only. Actual operating loads may vary but should not exceed the recommended design factor of 20% of the products breaking strength. Not intended for aircraft use.
- 1/8 in. cable diameter, 3/16 in. overall diameter, 7×7 construction
- 250 ft. Length
- 340 lbs. (154 kg) safe work load (SWL)
- Vinyl coated, high-strength cable
- Galvanized finish provides good corrosion and rust resistance
- Good strength, flexibility and abrasion resistance

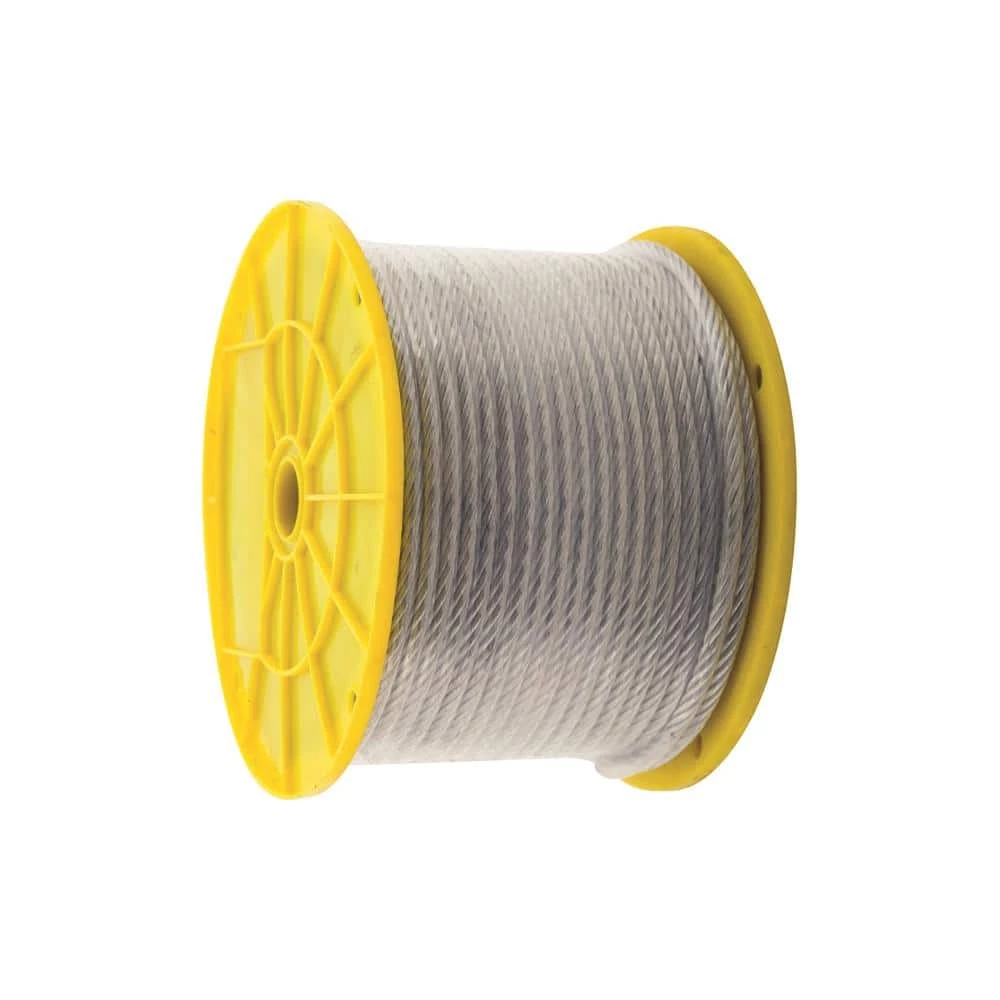

- Reeled (8 in. diameter reel)
| Coating Material | Vinyl Coated |
|---|---|
| Rope Configuration | Twisted |
| Product Width (in.) | 8 |
| Product Length (ft.) | 250 |
| Product Height (in.) | 3.25 |
| Product Depth (in.) | 8 |
| Manufacturer Warranty | Guaranteed against defects in workmanship and material or product replaced free of charge |
| Working Load Limit (lbs.) | 340 |
| Strand Construction | 7×7 |
| Returnable | 90-Day |
| Color Family | Metallics |
| Product Weight (lb.) | 9.93 |
| Package Quantity | 1 |
| Material | Galvanized Steel |
| Hardware Color Family | Metallic |
| Gauge | 0.1875 |
| Finish Family | Metallic |
| Features | Abrasion Resistant |
| Fastener Type | Wire Rope |
| Rope Diameter (in.) | 3/16 inch |
